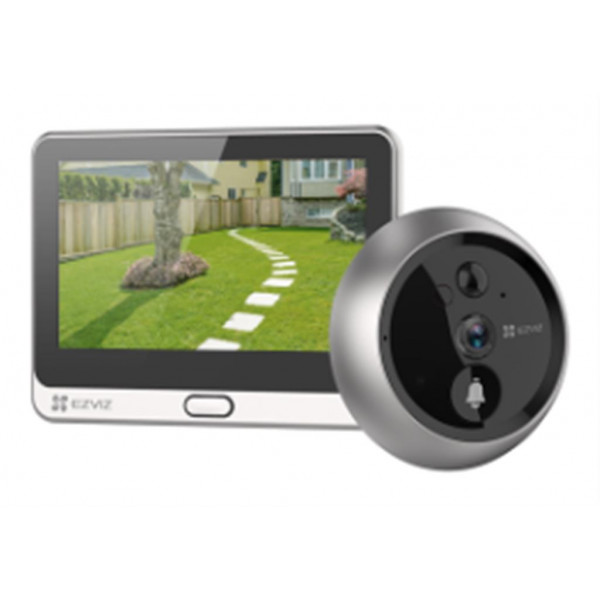

MIRILLA INALAMBRICA INTELIGENTE, 2MP, CON TIMBRE INTERNO, BATERIA RECARGABLE

Installation Parameters
********
Supported Hole Diameter 16.5 to 50 mm (0.65 to 1.97 inch)
Supported Door Diameter 35 to 105 mm (1.38 to 4.13 inch)

Camera Parameters
********
Sensor 1/3" Progressive Scan CMOS
Lens 2.0 mm @ F2.2, visual angle (diagonal):155°
Day/Night Switch ICR infrared filter
IR Distance Max. 5m
Max. Resolution 1080p / 2MP
Video Frame Rate 15fps

PIR Detection
********
Angle 110°
Distance Max. 6m (20 ft)
Sensitivity Adjustable

Interface
********
Storage Interface MicroSD card slot (max. 256 GB)
Audio Input Built-in high sensitivity microphone
Audio Output Built-in high-power speaker
Buttons Doorbell button, power button, Screen wake up button

Network
********
Face Detection Does not support
Intelligence Alarm PIR motion detection
Protocol EZVIZ Cloud Proprietary Protocol
Video Intercom Local and remote video intercom
General Function Cloud video encryption and image encryption

Wireless
********
Wi-Fi Standard IEEE802.11b, 802.11g, 802.11n
Frequency Range 2.4 GHz ~ 2.4835 GHz
Channel Bandwidth Supports 20 MHz
Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
Transmission Rate 11b: 11Mbps, 11g :54Mbps, 11n :150Mbps

General
********
Screen 4.3-inch color screen
Color Silver
Operating Conditions -10°C to 45°C (14°F to 113 °F ), Humidity 95% or less (non-condensing)
Power Supply DC 5V (±10%)
Power Consumption Max. 2.2W
Dimension Screen and Base: 115.5 x 85.5 x 24.5 mm (4.55 x 3.37 x 0.96 inch)
Peephole Doorbell: 71 x 71 x 48.3 mm (2.80 x 2.80 x 1.90 inch)
Weight 302 g (10.65 oz)

In the box
********
- Panel
- Mounting Base
- Power Cable
- Screws × 6
- Quick Start Guide
