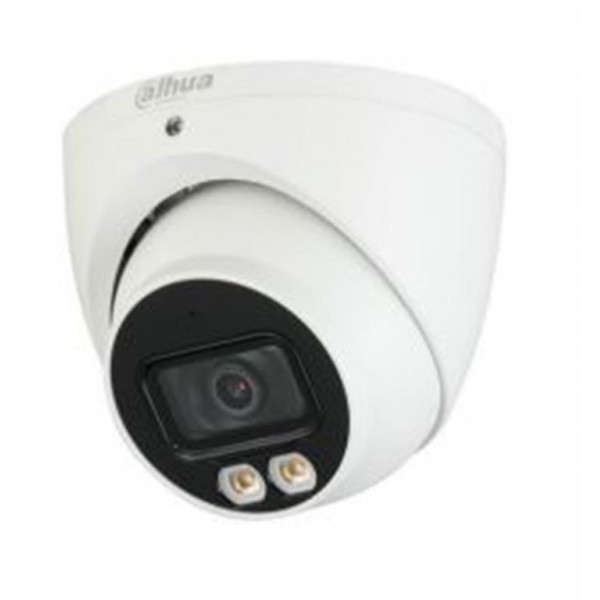

CAMARA EYEBALL(DOMO), HDCVI, 2MP(1080P), FULL COLOR, SMART DUAL ILLUMINATORS, AUDIO, 2.8MM, IP67

CAMERA
*******
Pixel: 2 MP
Image Sensor: 2 MP CMOS
Max. Resolution: 1920 (H) × 1080 (V)
Scanning System: Progressive
Electronic Shutter Speed
PAL: 1/25 s–1/100,000 s
NTSC: 1/30 s–1/100,000 s
Min. Illumination
0.001 lux@F1.6 (Color, 30 IRE)
0.0001 lux@F1.6 (B/W, 30 IRE)
0 lux (Illuminator on)
S/N Ratio: 65 dB
Illumination Distance: IR: 40 m (131.23 ft) Warm light: 40 m (131.23 ft)
Illuminator On/Off Control: Auto/Manual
Illuminator Number:
2 (IR light)
2 (Warm light)
Pan/Tilt/Rotation Range:
Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°

LENS
*******
Lens Type: Fixed-focal
Lens Mount: M12
Focal Length: 2.8 mm
Max. Aperture F1.6
Field of view: 2.8 mm: H: 107° V: 56° D: 127°
Iris Control: Fixed
Close focus distance: 2.8 mm: 0.7 m (2.29 ft)
Video Frame Rate
CVI:
PAL: 1080p@25 fps
NTSC: 1080p@30 fps
AHD:
PAL: 1080p@25 fps
NTSC: 1080p@30 fps
TVI:
PAL: 1080p@25 fps
NTSC: 1080p@30 fps
CVBS:
PAL: 960 × 576H
NTSC: 960 × 480H

LENS
*******
Resolution: 1080p (1920 × 1080) 960H (960 × 576/960 × 480)
Day/Night: Auto (ICR)/Color/B/W
BLC: BLC HLC WDR
WDR: 130 dB
White Balance: Auto Area white balance
Gain Control: Auto/Manual
Noise Reduction: 3D NR
Smart Illumination: Yes
Mirror: Off/On
Privacy Masking: Off/On (8 areas, rectangle)
Illuminator: Smart IR&WL WL Mode IR Mode
Video Output: Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Audio Input: One channel built-in MIC (-A)
Power Supply: 12 VDC ± 30%
Casing Material: Metal
