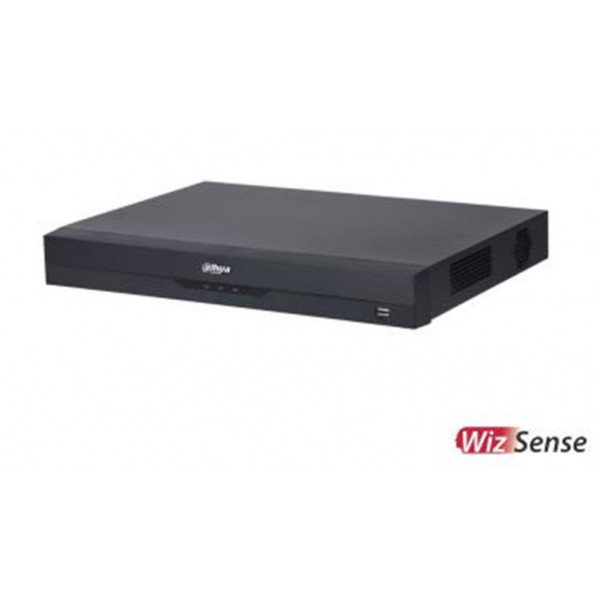

GRABADOR PENTAHIBRIDO, 16 CANALES, WIZSENSE, 2HDD, 1U, 4K, HDMI/VGA, DETECCION FACIAL

Main Processor: Industrial-grade processor
Operating System: Embedded Linux
Operating Interface: Web Local GUI
Perimeter Performance AI by Recorder (Number of Channels):
Advanced Model: 2 channels, 10 IVS for each channel
General Model: 8 channels, 10 IVS for each channel
Face Attributes: Gender age group glasses expressions face mask beard
Face Detection Performance of AI by Recorder (Number of Channels): 2 channels (up to 12 face images/s)
Face Database Capacity: Up to 10 face databases with 20,000 face images in total. Name, gender, birthday, address, certificate type, cerificate No., countries&regions and state can be added to each face picture
Face Recognition Performance of AI by Recorder (Number of Channels): 2 channels
SMD Plus by Recorder:
16 channels: Secondary filtering for human and motor vehicle SMD Plus, reducing false alarms caused by leaves, rain and lighting condition change
Analog Camera: Input 16 channel BNC: adaptive access by default HDCVI, AHD, TVI and CVBS access can be configured.
Camera Input:
1. CVI: 4K, 6MP, 5MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps.
2. TVI: 4K, 5MP, 4MP, 3MP, 1080P@25/30fps, 720P@25/30fps.
3. AHD: 4K, 5MP, 4MP, 3MP, 1080P@25/30fps, 720P@25/30fps.
IP Camera Input
Up to 32 channels of IPC access
16 IP channels by default + 16 channels (analog channels are converted to IP channels) incoming bandwidth: 128 Mbps, recording bandwidth:128 Mbps and outgoing bandwidth: 128 Mbps (After IP channels are added beyond the existing channels, the AI Function (IVS, SMD, FACE) will be disabled.
Encoding Capacity:
Main stream:
All channels 4K@(1-7fps) 6MP@(1-10fps) 5MP@(1-12fps) 4K-N/4MP/3MP@(1-15fps) 4M-N/1080P/720P/960H/D1/CIF(1fps–25/30fps)
Sub stream: 960H@(1fps–15fps) D1/CIF@(1 fps– 25/30fps
Dual-stream: Yes
Video Frame Rate:
PAL: 1 fps–25 fps.
NTSC: 1 fps–30 fps.
Video Bit Rate: 32 kbps–6144 kbps per channel
Audio Sampling: 8 kHz, 16 bit
Audio Bit Rate: 64 kbps
Video Output: 1 HDMI ,1 VGA (HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720)
Multi-screen Display:
When IP extension mode not enabled: 1/4/8/9/16
When IP extension mode enabled: 1/4/8/9/16/25/36
Video Compression: AI Coding H.265+ H.265 H.264+ H.264
Network Protocol: HTTP HTTPS TCP / IP IPv4 RTSP UDP SMTP NTP DHCP DNS DDNS P2P
Mobile Phone Access: iOS, Android
Record Mode: General, motion detection intelligent alarm POS
General Alarm: Motion detection, video loss, tampering
Audio Input: 1-channel RCA (external)
16-channel BNC (coaxial audio)
Audio Output: 1, RCA
Two-way Talk: Yes (share the same audio input with the first channel)
HDD Interface:
2 SATA ports,up to 16 TB for a single HDD, the maximum
HDD capacity varies with environment temperature
RS-485: 1
USB: 2 (1 front USB 2.0 port, 1 rear USB 3.0 port)
HDMI :1
VGA: 1
Network Port: 1 (10/100/1000 Mbps Ethernet port, RJ-45)
Power Supply: 12 VDC, 5 A
